Viewing Room Explication

To view room properties for a floor, do the following:

1. Select the desired scenario.

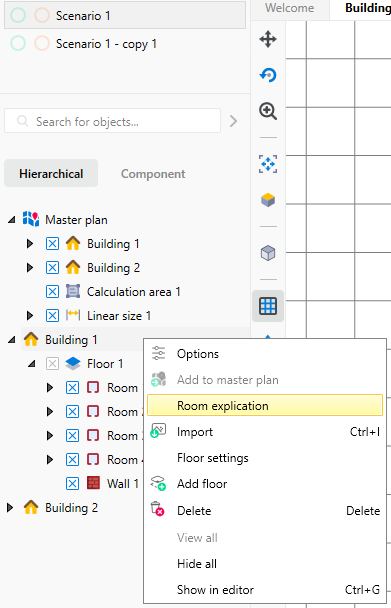

2. Right-click the name of a desired floor in the scenario browser and select Room explication in the menu that opens.

To view room properties for all floors, right-click the name of the building in the scenario browser and select Rooms explication.

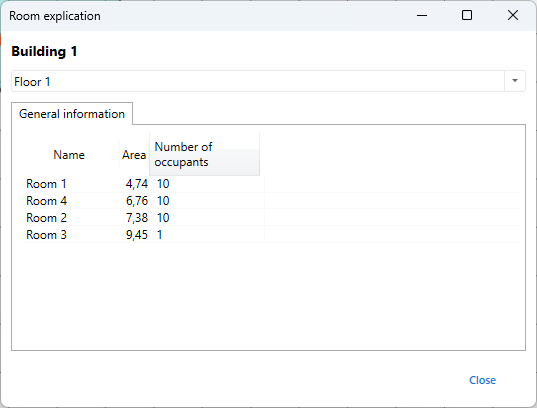

A window appears displaying the characteristics of rooms on this floor.

{width=50%}

{width=80%}
