Fenix+ 3 application allows you to hide objects on the scene and display only those that are required for your work.
By default all scenario objects are displayed. If necessary, you can hide certain objects, groups of objects (for example, stairways) and floors with all the objects located on them.
Hidden objects are not deleted from the scenario. They are not displayed on the scene.

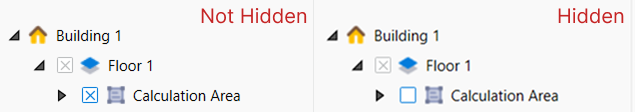

To hide a certain object, find it in the scenario browser and clear the checkbox next to its name or right-click the name of the objects and select Hide. The selected object is no longer displayed on the scene.
To select multiple objects, use the Ctrl key.
To display a hidden object, find it in the scenario browser and check the checkbox next to its name or right-click the name of the object and select Show. The selected object is displayed on the scene again.

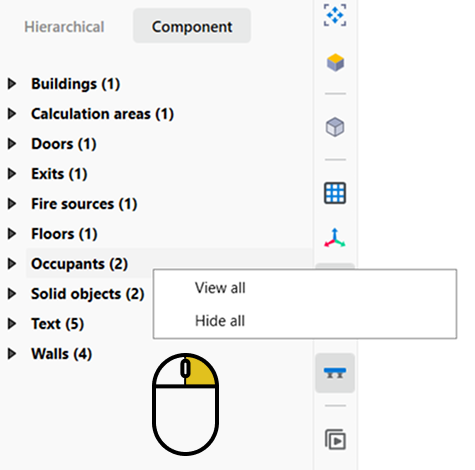

To hide a group of objects of a specific type, in the scenario browser switch to the Component tab, right-click the name of a desired group and select Hide. As a result, the selected group is not displayed on the scene.
To display a hidden group of objects, find this group in the scenario browser on the Component tab, right-click its name and select Show. The selected group is displayed on the scene again.
To hide a floor with all the objects, find this floor in the scenario browser and clear the checkbox next to its name or right-click its name and select Hide. The selected floor with its objects is not displayed on the scene.
To display a hidden floor with all the objects, find this floor in the scenario browser and select the checkbox next to its name or right-click its name and select Show. The selected floor with its objects is displayed on the scene again.
To hide all objects on the scene, right-click the name of the building in the scenario browser and select Hide. To display all hidden objects again, right-click the name of the building and select Show.
