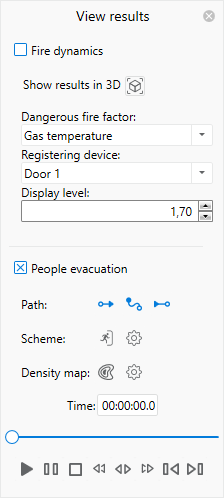

The visualization tab contains control elements, which allow you to visualize evacuation and fire dynamics simulation results.
{width=30%}
Depending on the type of open project, the Visualization tab may differ from what is shown.
The Fenix+ 3 application allows you to playback the people evacuation and the fire dynamics, both simultaneously and separately. To do this, you need to check the appropriate boxes.
The visualization tab contains the following contol elements:
FIRE DINAMYCS SIMULATION SECTION
- show fire dynamics;
- visualize fire dynamis using Smokeview;
- select a dangerous fire factor you want to display;
- select a registering device to display information on dangerous fire factors;
- select a level for displaying dangerous fire factor fields.
PEOPLE EVACUATION SIMULATION SECTION
- show evacuation;
- show covered distance;
- show entire distance;
- show remaining distance;
- show evacuation scheme;
- show evacuation scheme settings;
- show density of human flow;
- show density of human flow settings;
- timeline indicator.
VIZUALIZATION CONTROL SECTION
- start playback;
- pause playback;
- stop playback;
- decrease playback speed;
- playback with real time speed;
- increase playback speed;
- Step forward;
- Step backward.
When playing back simulation results, you can change the playback time, either by moving the slider or by manually editing the playback time.
To change the playback time manually, do the following:
- Pause the playback by clicking the
button. - Set the time by entering the desired value in the Time field and pressing the Enter key.
- Resume the playback by clicking the
button.
By default, the controls located on the simulation results vizualization panel are not available. These controls become available automatically after the evacuation simulation and/or fire dynamics simulation is completed.
