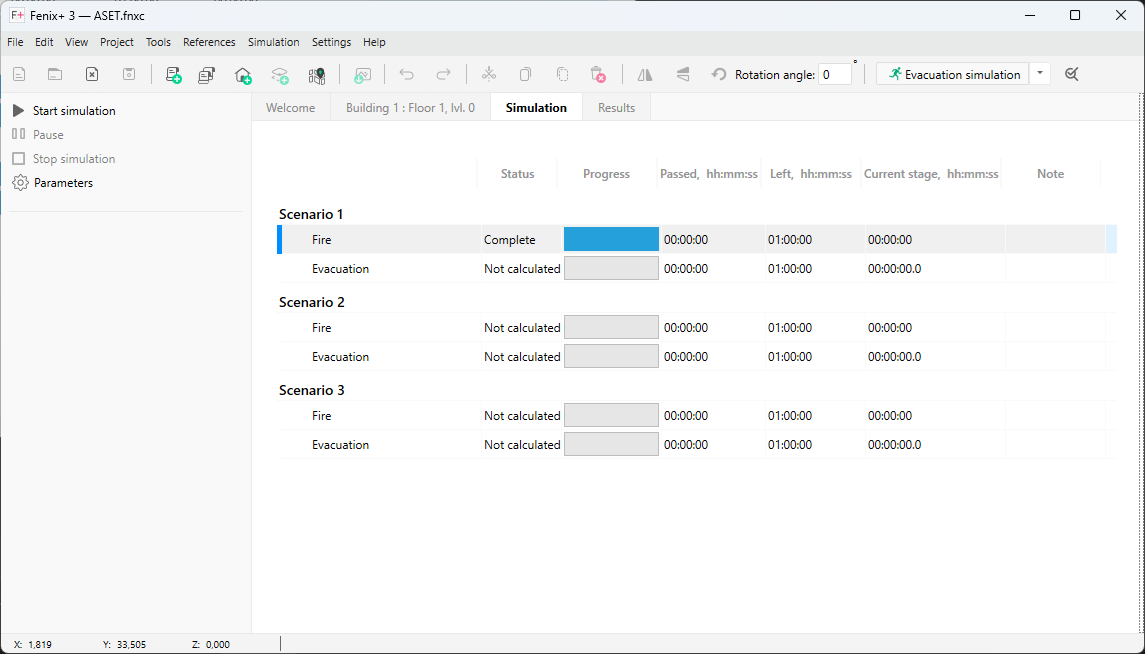

The simulation control tab contains controls for setting up simulation parameters, performing simulations of people evacuation (only in fire risk calculation projects) and fire dynamics for all scenarios in the project, as well as connecting to the Fenix Server software package.
Depending on the type of the open project, the appearance of the simulation control tab may differ from what is shown.
On the left side of the tab, the following control elements are located:
- Start simulation;
- Pause simulation;
- Stop simulation;
- Configure evacuation/fire dynamics simulation parameters;
In the center of the work area there is a table with information on the progress / results of evacuation simulation and fire dynamics for all scenarios in the project.
You can adjust the appearance of the table with simulation results by changing the order and width of the columns.
