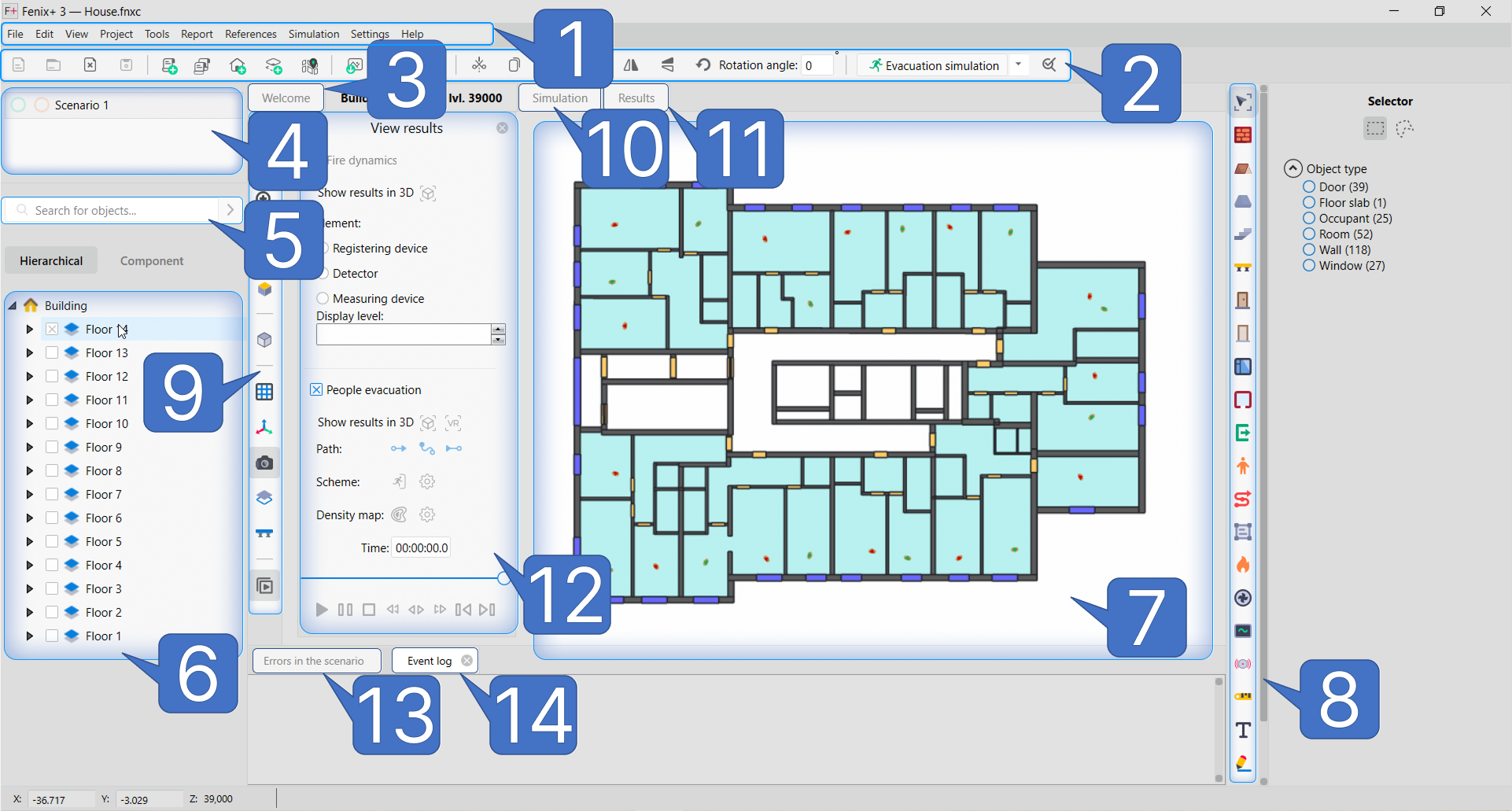

The picture below shows the main window of Fenix+ 3 application.
Depending on the type of the open project, the main application window may differ from what is shown.

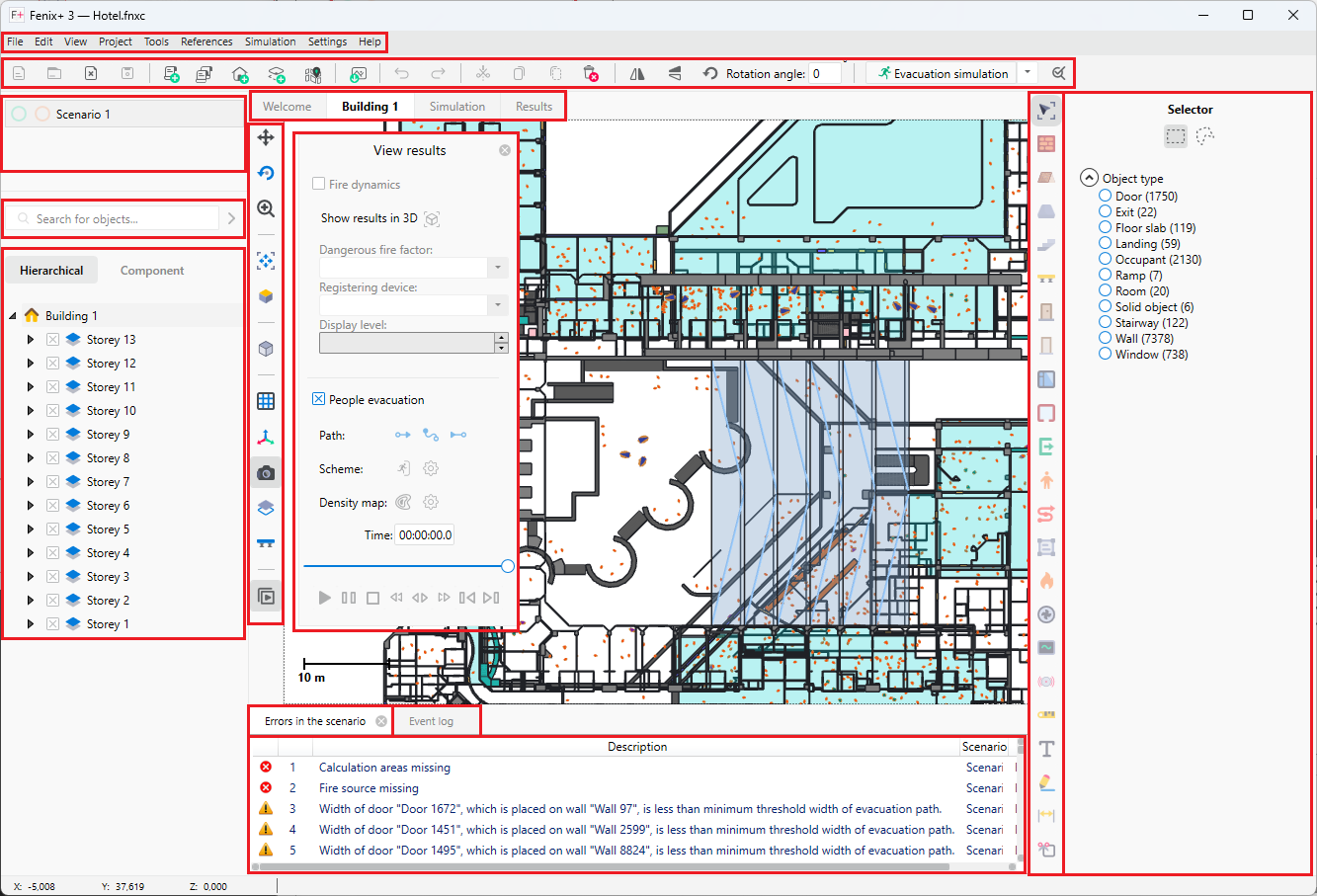

The main application window contains the following interface elements:
- Menu
- Control panel
- Start page
- Scenario list
- Search field
- Scenario browser
- Scene editor
- Drawing toolbar
- Additional toolbar
- Simulation control tab
- Simulation results tab
- Visualization panel
- Fire risk calculation results tab
- Error panel
- Event log

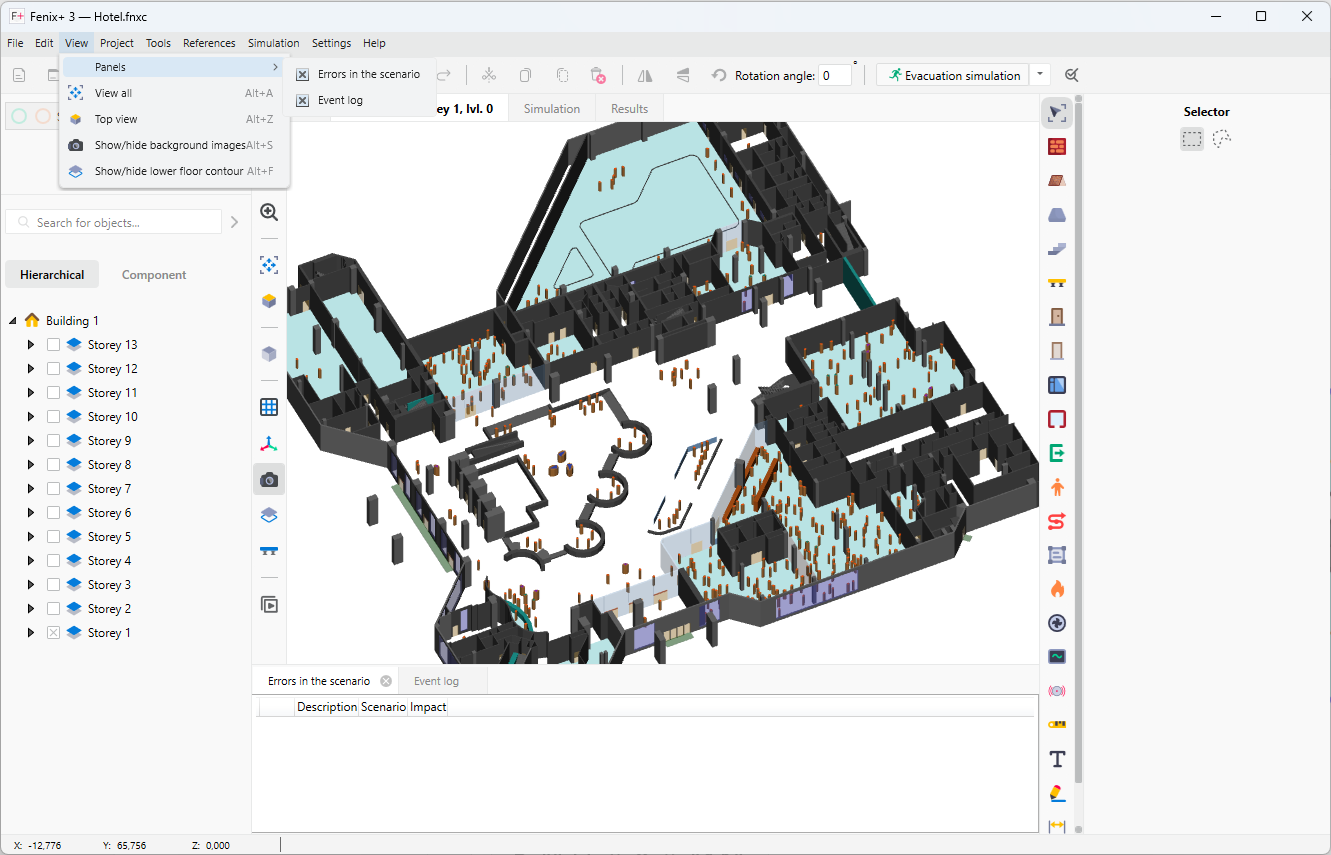

For convenience, the application allows you to customize the dimensions of the main window’s workspace. You can adjust the width of the left and right parts of the workspace. Individual interface elements (for example, the error panel and the event log) can be hidden. You can use the Close button located in the title field of the respective element.
To display a hidden interface element, navigate to View | Panels and then ceck the box next to the item you want to display.
You can also change the width and order of the columns in the tables of the application’s main window. To do this, left-click and hold the border or the name of the desired column and drag it to change the width or location of the column.
All changes to the appearance of the application’s main window only apply to the current session. When the application is launched again, the appearance of the main window returns to the default state.
