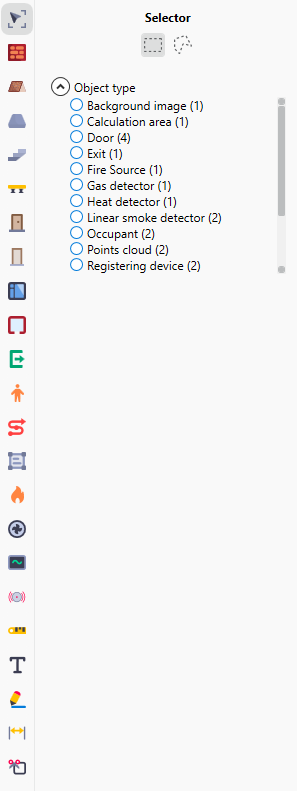

The drawing toolbar is used to select the necessary tool for work. On the left side of the panel there are buttons with icons of all the tools, and on the right side of the panel the settings of the active tool are displayed.
The drawing toolbar is only active if one of the floors of the building is selected in the project tree. Until a floor is selected, no tools can be activated.
If any additional tools are activated (Scene Movement, Scene Rotation, Scene Zoom), the drawing tools become inactive. To return to working with the drawing tools, deactivate the additional tool you are using. For more information, see Additional Tools.
When you select an object in the scene editor or in the scenario browser using the Selector tool, the properties table for the selected object is displayed on the right side of the panel. For more information, see Selector.
{width=35%}
The drawing toolbar contains the following tools:
- The Selector tool allows you to select one or several objects on the scene;
- The Wall tool allows you to place a wall of various configurations on the scene;
- The Roof tool allows you to to place a roof of various configurations on the scene;
- The Solid tool allows you to place a solid object (a random geometric object) on the scene;
- The Stairway tool allows you to place a stairway on the scene;
- The Floor Slab tool allows you to place a floor slab on the floor;
- The Door tool allows tou to place a door in the wall;
{width=05%} - The Doorway tool allows tou to place a doorway in the wall;
- The Window tool allows you to place a window in the wall;
- The Room tool allows you to define some specific area inside a building;
- The Exit tool allows you to place an exit on the scene;
- The Occupants tool allows you to place one person or a group of people on the scene;
- The Waypoint tool allows you to place a waypoint on the scene;
- The Calculation Area tool allows you to specify the area in which you need to simulate the development of the fire;
- The Fire Source tool allows you to specify the fire source;
- The Ventilation tool allows you to place a vent on the wall and on the floor slab;
- The Registering device tool allows you to place a registering device and a vertical slice;
{width=05%} - The Detector tool allows you to place a detector on the scene;
- The Ruler tool allows you to measure the length of any object, as well as change the scale of the scene;
- The Text tool allows you to place text;
- The Line tool allows you to place auxiliary lines in the scene editor;
- The Linear size tool allows you to specify the linear size of the object;
- The Opening tool allows you to place an opening in a floor slab, landing or in a room
