To view properties of multiple objects on the scene, do the following:
- Activate the Selector tool. For more information, see Selector.
- Holding the Ctrl key, select desired objects on the scene.
Objects you select must belong to the same type (for example, you can select several doors, several windows, etc.).

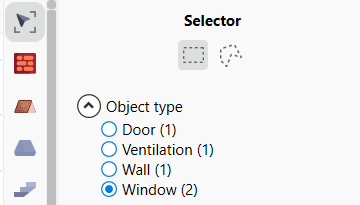

To select multiple objects with the Selector tool, you can also draw a selection area so that it includes objects which properties you want to display. If the selection area also includes objects of a different type, then select a desired object type from the Object type list on the side panel.

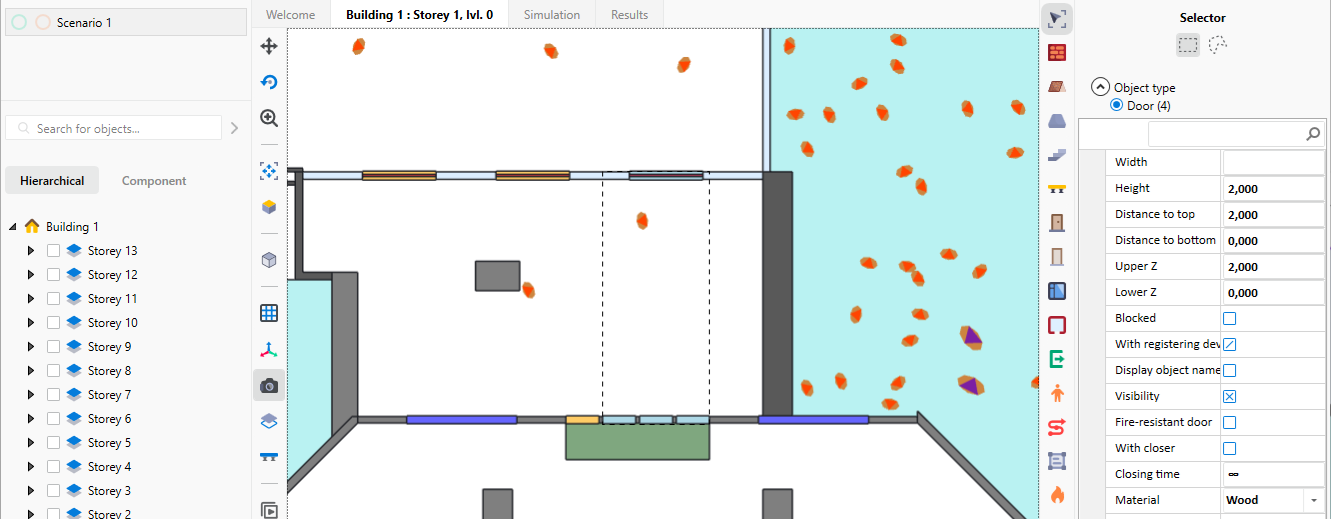

As a result, properties of the selected objects are displayed in the right part of the application window.
In the properties table, only those properties that are common to all selected objects are displayed. Properties that differ for the selected objects are not displayed in the properties table.
To change properties of multiple objects on the scene, do the following:
- Activate the Selector tool. For more information, see Selector.
- Holding the Ctrl key, select desired objects on the scene.
- Change necessary values in the properties table.
